Product Details

The NanoSprint15 Mk-II is AMT’s  product featuring an entirely new sensor that achieves the high sensitivity required for materials and life-sciences. Its fine-pixel, low-noise CMOS sensor offers a large 15 megapixel sampling region with a high speed 32fps readout.

AMT coupled the sensor's generous field-of-view and ultra-fine sampling with AMT's high performance optics to create a system that is ideal for a wide range of applications. Users can enjoy both its excellent contrast plus the ability to zoom for
images that contain both context and detail.

Technical specifications

Sensor Size [pixels]                       5056 × 2960

Phosphor Pixel Size [μm]               12.75 x 12.75

Active Pickup Region [mm]            65 x 37

Digitization                                   16 bit

Mounting Position                         On-Axis

HT Range [kV]                              20–200

Optical Coupling                           Custom high performance lens

Lens Magnification                         0.34

Lens NA image                              0.32

Lens MTF at Nyquist [%]                >50

Framerate for Display Image [fps]    30

Cooling                                         20⁰C water

Micro Lenses                                  Yes

Shutter                                         Global

Exposure Time [ms]                       1 - 10,000

Power                                           100-240VAC

Digital Interface                              PCIe

Vacuum Compatibility                     <10-7 torr

Vacuum Seals                                 Fixed o-ring

Environment                                  Electronics and cooling outside of vacuum

X-ray shielding limit                        Up to 200kV

Certifications                                  UL, CE , RoHS

Computer OS                                 Windows 10 Professional 64 bit

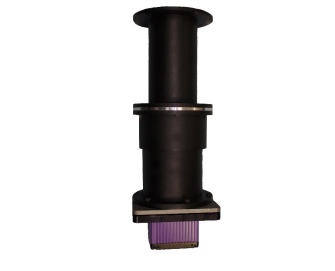

Product appearance
